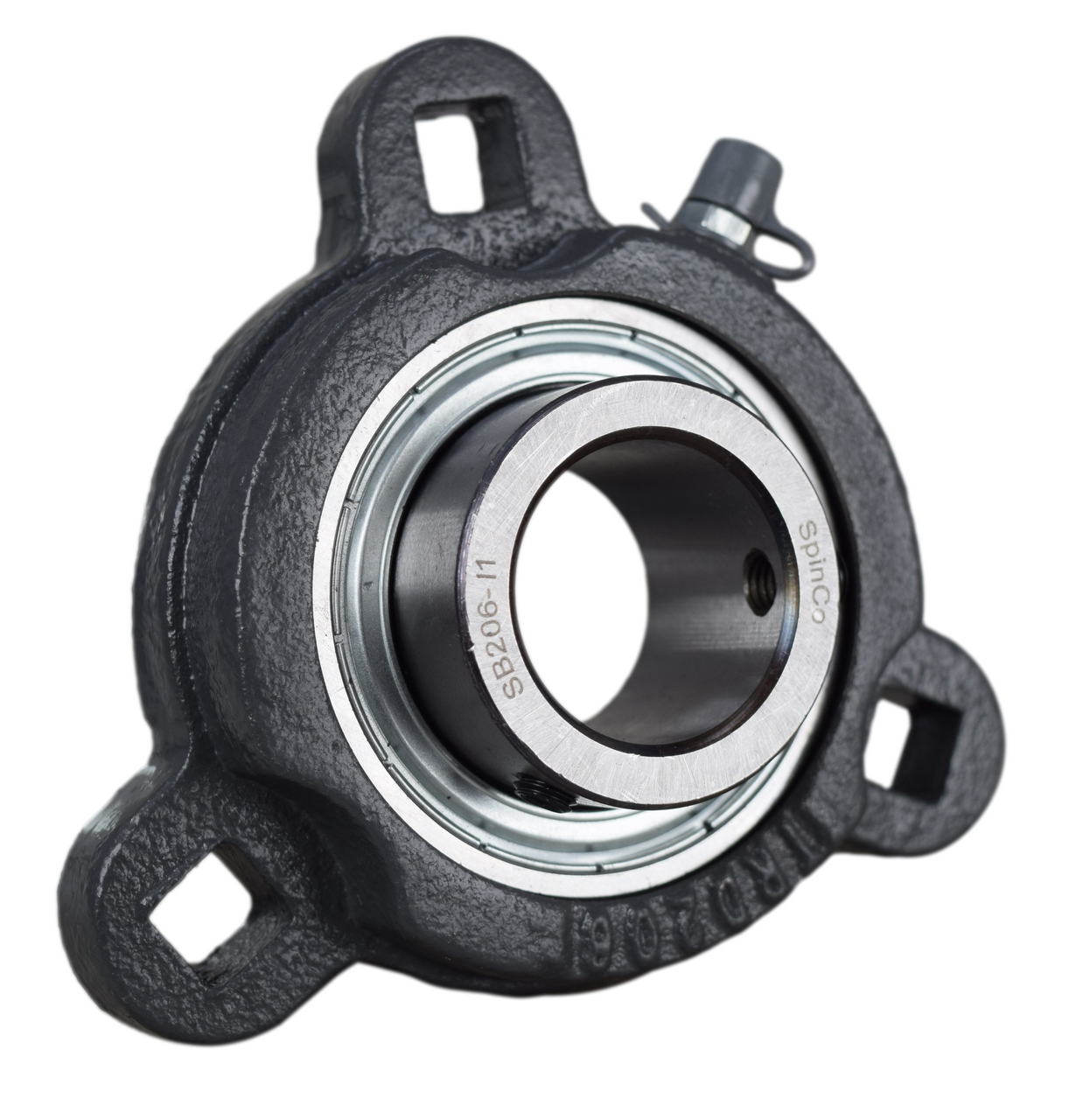

Description - 1-1/16" Three Bolt Flange Bearing SBTRD206-17G, FHSF3X206-17G, VF3S-117
High quality 1-1/16" three bolt flange bearing. The bearing has a narrow inner ring with two set screws for attaching to the shaft. Housing is cast iron with a grease zerk for re-lubing the bearing.
|
Basic Dimensions |
||||
|
Shaft Size |
Bolt Distance |
Bolt Circle |
Centerto Edge |
Overall Thickness |
|
1-1/16" |
3.08" |
3.56" |
2.22" |
1.34" |
Click Above for Full Dimensions
INTERCHANGES
Peer: FHSF3X206-17G
AMI: BTM206-17
Browning: VF3S-117
Dodge: LF-SC-117
Fafnir: GSFD-1-1/16
